ES1-D-W corner protection profile (PU) with adhesive surface in white - impact protection - warning profile - protective profile

SKU: SMI-ES1-D-W
HAN: ES1-D-W
Category: Warning and protection profiles
Manufacturers: SMI - Gräwe & Sohn GmbH

ES1-D-W PU corner protection profile with adhesive surface in white

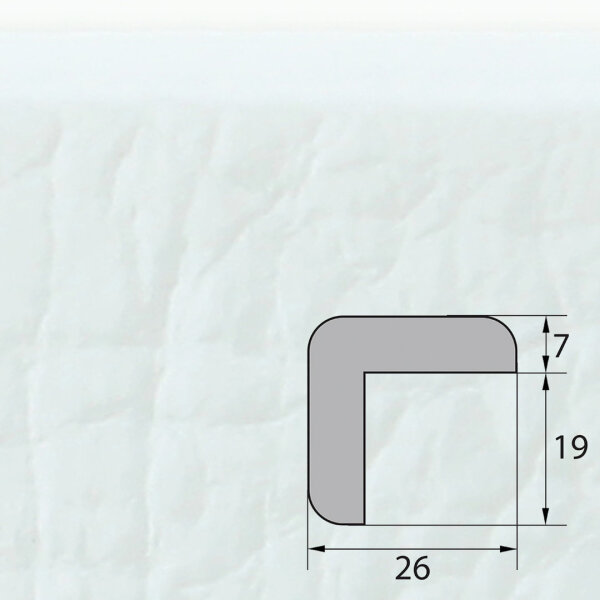

Profile dimensions: corner protection profile with adhesive surface, colour white (similar to RAL 9003 signal white)
Material: polyurethane foam with PU protective film, recyclable & CFC-free
Properties: hardness approx. 45 Shore A, temperature resistance -40 °C to +100 °C, fire test according to DIN EN 13501-1 Class E
Further information: supplied by the metre, easy installation with high-performance adhesive, RoHS-compliant

Länge

from

45,55 €

incl. 19% VAT , plus

Available immediately

This item has variations. Please select the requested variation.

Description

ES1-D-W corner protection profile in white – reliable edge protection with adhesive surface

The ES1-D-W corner protection profile reliably protects edges and corners in production areas, storage rooms or workshops. The robust PU foam effectively absorbs impacts and thus prevents injuries as well as damage to machines and inventory. The white colour (similar to RAL 9003 signal white) provides a neutral and unobtrusive appearance. Thanks to the self-adhesive backing, installation is simple and quick. Suitable for indoor and outdoor use.

Technical data:
- Material: PU foam with PU protective film, recyclable & CFC-free
- Colour: white, similar to RAL 9003 signal white
- Hardness: approx. 45 Shore A
- Temperature resistance: -40 °C to +100 °C
- Fire test: DIN EN 13501-1 / Class E
- RoHS-compliant according to Directive 2002/95/EC
Adhesive surface with high-performance adhesive:
- Light- and ageing-resistant acrylate adhesive
- Adhesive strength: 21 N/25 mm
- Suitable for wood, metal, walls and plaster (non-dusting)
- Optimal processing temperature: 15 – 20 °C
- Final adhesive strength after approx. 24 hours
Easy installation:
- Cut the profile to the desired length (e.g. cutter knife)
- Clean the surface thoroughly (free of grease, dry, dust-free)
- Remove the adhesive film, position the profile and press firmly

Item information	Value
Product safety information:	The products of SMI - Gräwe & Sohn GmbH are developed and manufactured in accordance with the current state of the art. The instructions for use must be observed. When fitting the profiles, the specifications of the manufacturer of the objects to which the profiles are attached must be followed. The user must check and, where necessary, test the suitability of the substrate. The products are intended exclusively as warning and protective profiles (intended use). Any other use is considered improper. We accept no warranty, liability or compensation for damage resulting from improper use. The risks of improper use are borne solely by the user. The images shown are examples; the original products may differ. Dimensions are approximate and colours may vary. Subject to technical modifications.
