ES1-EV-3D-W corner connector - 3D for ES1 corner protection profile (PU) with adhesive surface - white - impact protection

SKU: SMI-ES1-EV-3D-W-1STK
GTIN: 4251463538173
HAN: ES1-EV-3D-W
Category: Accessories
Manufacturers: SMI - Gräwe & Sohn GmbH

ES1-EV-3D-W corner connector for ES1 PU corner protection profile white (1 piece)

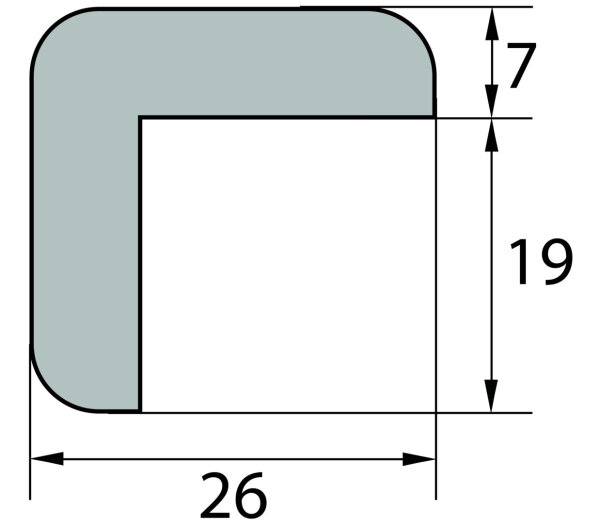

Dimensions: three-dimensional connector element, suitable for ES1 corner protection profiles
Material: polyurethane foam with PU protective film, recyclable & CFC-free
Properties: hardness approx. 45 Shore A, temperature resistance -40 °C to +100 °C, fire test DIN EN 13501-1 Class E
Further information: supplied in white, 1 piece, EAN 4251463538173, easy installation with high-performance adhesive

43,14 €

incl. 19% VAT , plus

Available immediately
Delivery time: 6 - 7 Workdays (DE - int. shipments may differ)

Piece

Description

ES1-EV-3D-W corner connector – three-dimensional connection for ES1 corner protection profiles in white

The ES1-EV-3D-W corner connector is the ideal addition to ES1 corner protection profiles. It enables a clean and stable connection in three-dimensional corners. The robust PU foam reliably absorbs impacts and protects inventory, machines and people from damage or injury. Thanks to the white colour, the connector blends unobtrusively into bright environments. The self-adhesive backing ensures simple and secure installation. One piece is supplied.

Technical data:
- Suitable for all ES1 corner protection profiles with adhesive surface
- Material: PU foam with PU protective film, recyclable & CFC-free
- Colour: white
- Hardness: approx. 45 Shore A
- Temperature resistance: -40 °C to +100 °C
- Fire test: DIN EN 13501-1 / Class E
- RoHS-compliant according to Directive 2002/95/EC
- EAN: 4251463538173
Adhesive surface with high-performance adhesive:
- Light- and ageing-resistant acrylate adhesive
- Adhesive strength: 21 N/25 mm
- Suitable for wood, metal, walls and plaster (non-dusting)
- Optimal processing temperature: 15 – 20 °C
- Final adhesive strength after approx. 24 hours
Easy installation:
- Clean the surface thoroughly (free of grease, dry, dust-free)
- Remove the adhesive film
- Position the profile and press firmly
- Maximum adhesion is reached after approx. 24 hours

Item information	Value
Shipping weight:	0,02 kg
Item weight:	0,02 kg
Dimensions ( Length × Width × Height ):	2,60 × 2,60 × 2,60 cm
Product safety information:	The products of SMI - Gräwe & Sohn GmbH are developed and manufactured in accordance with the current state of the art. The instructions for use must be observed. When fitting the profiles, the specifications of the manufacturer of the objects to which the profiles are attached must be followed. The user must check and, where necessary, test the suitability of the substrate. The products are intended exclusively as warning and protective profiles (intended use). Any other use is considered improper. We accept no warranty, liability or compensation for damage resulting from improper use. The risks of improper use are borne solely by the user. The images shown are examples; the original products may differ. Dimensions are approximate and colours may vary. Subject to technical modifications.
