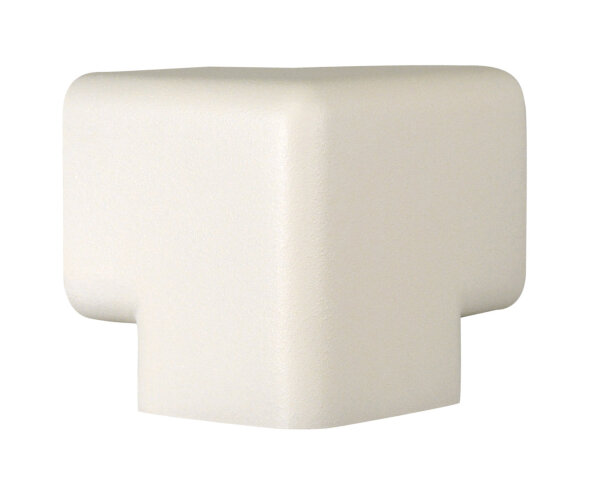

ES2-EV-3D-W Corner connector - 3D for corner protection profile ES2 (PU) with adhesive surface - White - Impact protection

SKU: SMI-ES2-EV-3D-W-1STK
GTIN: 4251463538197
HAN: ES2-EV-3D-W
Category: Accessories
Manufacturers: SMI - Gräwe & Sohn GmbH

ES2-EV-3D-W Corner connector for corner protection profile ES2 (PU) – White

Dimensions: Suitable for profile series ES2, three-dimensional connecting element
Material: Polyurethane foam with PU protective film, recyclable & CFC-free
Properties: Hardness approx. 45 Shore A, temperature resistant -40 °C to +100 °C, Fire test DIN EN 13501-1 Class E, RoHS-compliant
Further info: Self-adhesive with high-performance adhesive, EAN: 4251463538197

50,05 €

incl. 19% VAT , plus

Available immediately
Delivery time: 6 - 7 Workdays (DE - int. shipments may differ)

Piece

Description

Three-dimensional corner connector for corner protection profiles ES2 – White

The ES2-EV-3D-W corner connector is the ideal accessory for our corner protection profiles of the ES2 series. As a three-dimensional connecting element, it enables stable and secure transitions at complex corners. The robust polyurethane foam absorbs even strong impacts and reliably protects machines, inventory and people. Thanks to its white color, it blends discreetly into bright environments and ensures a clean, professional appearance.

Technical data

Product: Corner connector ES2-EV-3D-W
Suitable for: Corner protection profiles of series ES2
Material: Polyurethane foam with PU protective film
Hardness: approx. 45 Shore A
Color: White
Fire test: DIN EN 13501-1 / Class E
RoHS-compliant (Directive 2002/95/EC)
EAN: 4251463538197

Adhesive surface

Self-adhesive with modified acrylate high-performance adhesive
Adhesive strength: 21 N / 25 mm
Light and aging resistant
Suitable for wood, metal, walls, non-dusting plaster
Temperature resistance: -40 °C to +100 °C
Optimal processing temperature: 15 – 20 °C

Installation instructions

Clean surface (grease-free, dust-free, dry)
Carefully peel off adhesive film
Place corner connector and press firmly
Maximum adhesive strength is achieved after approx. 24 hours

Item information	Value
Shipping weight:	0,05 kg
Item weight:	0,05 kg
Dimensions ( Length × Width × Height ):	4,50 × 4,50 × 4,50 cm
Product safety information:	The products of SMI - Gräwe & Sohn GmbH are developed and manufactured in accordance with the current state of the art. The instructions for use must be observed. When fitting the profiles, the specifications of the manufacturer of the objects to which the profiles are attached must be followed. The user must check and, where necessary, test the suitability of the substrate. The products are intended exclusively as warning and protective profiles (intended use). Any other use is considered improper. We accept no warranty, liability or compensation for damage resulting from improper use. The risks of improper use are borne solely by the user. The images shown are examples; the original products may differ. Dimensions are approximate and colours may vary. Subject to technical modifications.
