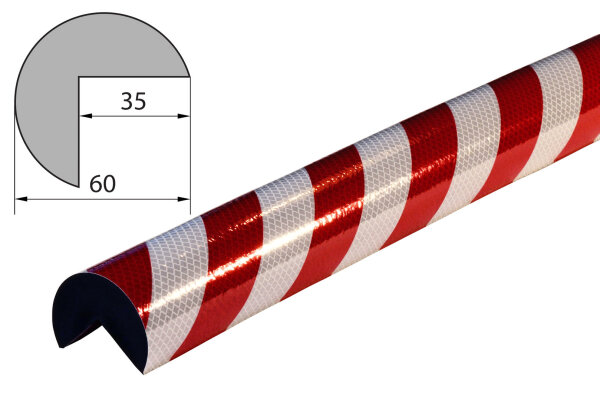

ES5-RR-1 Corner Protection Profile (PU) with Adhesive Surface Reflective/Red - Impact Protection - Warning Profile (1m piece)

SKU: SMI-ES5-RR
HAN: ES5-RR
Category: Warning and protection profiles
Manufacturers: SMI - Gräwe & Sohn GmbH

ES5-RR-1 Corner Protection Profile (PU) with Adhesive Surface Reflective/Red – 1 m piece

Dimensions: Profile type ES5, supplied as 1 m piece
Material: robust polyurethane foam, recyclable, CFC-free, with PU protective film
Properties: Hardness approx. 45 Shore A, temperature resistant -40 °C to +100 °C, RoHS compliant, fire test acc. to DIN EN 13501-1 / Class E
Further info: Reflective surface for high visibility, strong adhesive strength 21 N/25 mm

Länge

89,95 €

89,95 € per 1 m

incl. 19% VAT , plus

Available immediately

This item has variations. Please select the requested variation.

Description

ES5-RR-1 Corner Protection Profile – reflective warning & impact guard in Red (1 m piece)

The ES5-RR-1 corner protection profile combines impact-absorbing PU foam with a reflective red surface. This not only provides effective edge protection but also enhances safety through better visibility – especially in areas with poor lighting conditions. The profile is robust, durable, and quick to install thanks to its high-performance adhesive backing. Ideal for indoor and outdoor use where impact protection and warning effect are equally important.

Technical data:
- Profile type: ES5-RR-1
- Length: 1 m piece
- Hardness: approx. 45 Shore A
- Temperature resistance: -40 °C to +100 °C
- Adhesive strength: 21 N/25 mm
- Optimal processing temperature: 15 - 20 °C
Material properties:
- PU foam, recyclable & CFC-free
- PU protective film for added stability
- Reflective red surface
- RoHS compliant according to Directive 2002/95/EC
- Fire test acc. to DIN EN 13501-1 / Class E
Special advantages:
- Reflective for better visibility and safety
- Reliable protection for corners & edges
- Quick & easy installation on wood, metal, walls & plaster
Easy installation:
1. Cut profile to desired length (e.g. utility knife)
2. Clean substrate (grease-free, dust-free, dry)
3. Peel off adhesive film
4. Apply profile and press firmly
5. Final adhesion achieved after approx. 24 hours

Item information	Value
Content:	1,00 m
Product safety information:	The products of SMI - Gräwe & Sohn GmbH are developed and manufactured in accordance with the current state of the art. The instructions for use must be observed. When fitting the profiles, the specifications of the manufacturer of the objects to which the profiles are attached must be followed. The user must check and, where necessary, test the suitability of the substrate. The products are intended exclusively as warning and protective profiles (intended use). Any other use is considered improper. We accept no warranty, liability or compensation for damage resulting from improper use. The risks of improper use are borne solely by the user. The images shown are examples; the original products may differ. Dimensions are approximate and colours may vary. Subject to technical modifications.
