ESTP16 - EPDM Solid Rubber Frame Profile, Insert Profile, Mushroom Profile, Container Rubber

SKU: SMI-ESTP16-1M
GTIN: 4251463541203
HAN: ESTP16
Category: Insert profiles
Manufacturers: SMI - Gräwe & Sohn GmbH

ESTP16 EPDM Solid Rubber Frame Profile – Insert Profile & Mushroom Profile

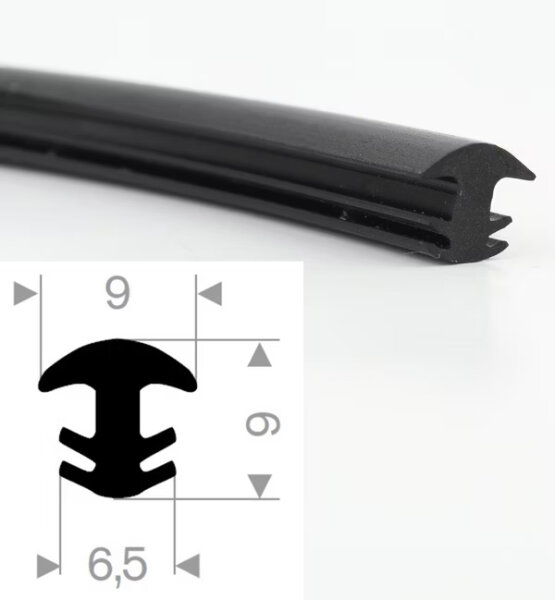

Dimensions: Gap width approx. 4–6 mm, total width approx. 9 mm, total height approx. 9 mm, foot approx. 6.5 mm, supplied up to 100 m in one piece
Material: EPDM solid rubber, Colour Black, Hardness approx. 70 Shore A
Properties: Temperature range -35 °C to +100 °C (briefly up to +120 °C), UV-, ozone- & weather-resistant
Further info: Tolerance according to DIN ISO 3302-1 E3, not resistant to mineral oils, EAN 4251463541203

3,93 €

3,93 € per 1 m

incl. 19% VAT , plus

From	Unit price / Metre (1,00 m)	Base price
3	3,85 €*	3,85 € per m
5	3,81 €*	3,81 € per m
10	3,77 €*	3,77 € per m
25	3,30 €*	3,30 € per m
50	3,10 €*	3,10 € per m
100	2,91 €*	2,91 € per m
300	2,79 €*	2,79 € per m
500	2,67 €*	2,67 € per m

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Metre

Description

ESTP16 EPDM Solid Rubber Frame Profile – Mushroom Profile & Container Rubber

The frame profile ESTP16 is a robust insert and mushroom profile made of high-quality EPDM solid rubber. It is ideally suited for gap widths of approx. 4–6 mm and is frequently used as a door seal, steel frame profile or container rubber. Thanks to its excellent resistance to UV radiation, ozone and weathering, as well as its resistance to chemicals such as dilute alkalis and salt solutions, it is a durable sealing solution for a wide range of applications.

Technical data

Gap width: approx. 4–6 mm
Total width: approx. 9 mm
Total height: approx. 9 mm
Foot: approx. 6.5 mm
Material: EPDM solid rubber, black
Hardness: approx. 70 Shore A
Temperature range: -35 °C to +100 °C (briefly up to +120 °C)
Tolerance: according to DIN ISO 3302-1 E3
EAN: 4251463541203

Resistance

Very good resistance to UV radiation, ozone and weather
Resistant to dilute alkalis and acids
Resistant to salt solutions of all types
Not resistant to mineral oils

Further features

Supplied up to 100 m in one piece
Durable and flexible in use
Versatile use as door seal, mushroom profile or container rubber

Item information	Value
Shipping weight:	0,06 kg
Item weight:	0,06 kg
Content:	1,00 m
Dimensions ( Width × Height ):	0,90 × 0,90 cm
Product safety information:	Odour formation: All our profiles comply with the European RoHS and REACH regulations. Nevertheless, temporary odours may occur in enclosed spaces, to which some people may be sensitive. Wear: Although our profiles have a good service life, signs of wear will appear sooner or later depending on use. These may impair the dimensional stability and sealing performance of the profile. Therefore, check its condition regularly. Safety: Avoid prolonged skin contact and contact of the profile with food. Due to the risk of strangulation, keep this profile out of the reach of children. The adhesive surface is non-toxic and presents no particular risk during normal use. Nevertheless, prolonged direct skin contact should be avoided and gloves are recommended during processing.
