GP-IG/IG-6/6-M6-D20xH15 rubber-metal buffer rubber buffer vibration damper silent block

GP-IG/IG-6/6-M6-D20xH15 rubber-metal buffer rubber buffer vibration damper silent block

SKU: GP-IG/IG-6/6-M6-D20xH15-1STK
GTIN: 4251463554432
HAN: GP-IG/IG-6/6-M6-D20xH15
Category: Type 3 internal thread / internal thread M6
Manufacturers: SMI - Gräwe & Sohn GmbH

GP-IG/IG-6/6-M6-D20xH15 rubber-metal buffer - cylindrical damping element type 3 with internal thread on both sides, suitable for compact applications where effective vibration and shock damping is required

1,37 €

incl. 19% VAT , plus

From	Unit price / Piece
3	1,34 €*
5	1,33 €*
10	1,31 €*
25	1,15 €*
50	1,08 €*
100	1,01 €*
300	0,97 €*
500	0,93 €*

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Piece

Description

Reliable vibration damper for electrical & control engineering

The GP-IG/IG-6/6-M6-D20xH15 is a cylindrical rubber-metal buffer type 3 with internal thread on both sides. With a diameter of 20 mm and an installation height of 15 mm, it is suitable for compact applications where effective vibration and shock damping is required. The natural rubber used (55° +/-5° Shore) offers a good combination of elasticity and stability, while the galvanized metal parts protect against corrosion.

Typical application areas are electrical and control engineering, smaller machines and devices as well as units. Here, the silent block reliably reduces vibrations, protects electronic and mechanical components and contributes to quieter operation. Thanks to the internal threads M6 on both sides, it can be mounted flexibly and securely.

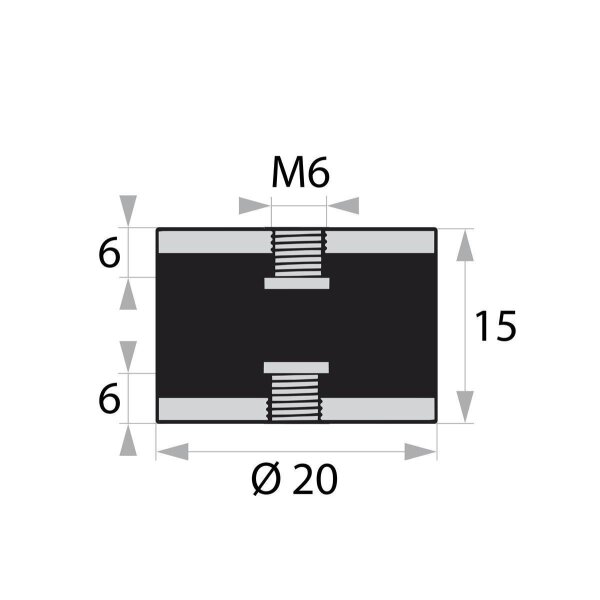

Technical data

Diameter: 20 mm
Height: 15 mm
Internal thread: M6, length 6 mm
Design: Type 3 (internal thread on both sides)
Material: Natural rubber NK 55° +/-5° Shore
Metal parts: White galvanized, CRVI-free
EAN: 4251463554432

Special features

Effective vibration and shock damping
Optimal for electrical & control engineering
Durable, elastic and maintenance-free
Corrosion-protected through galvanized metal parts
Also available in stainless steel

Further information

Other sizes, hardnesses and rubber qualities available on request
Custom manufacturing according to drawing or sample possible
Use in electrical devices, control systems & small machines

Item information	Value
Shipping weight:	0,04 kg
Item weight:	0,04 kg
Dimensions ( Length × Width × Height ):	2,00 × 2,00 × 1,50 cm
Product safety information:	Specific risks and information for consumers or end users: Risk from incorrect use: Using the rubber-metal buffer in unsuitable applications, for example through overloading or incorrect positioning, may cause injuries or machine damage. Long-term risks: Elastomer parts may age over time and lose their damping properties. Regular inspection is required. Ageing and wear: Visually inspect the product at regular intervals.
