GP/S-AG/IG-10/4-M5-D15xH10 rubber-metal buffer rubber buffer vibration damper silent block

GP/S-AG/IG-10/4-M5-D15xH10 rubber-metal buffer rubber buffer vibration damper silent block

SKU: GP-AG/IG-10/4-M5-D15xH10-1STK
GTIN: 4251463553763
HAN: GP-AG/IG-10/4-M5-D15xH10
Category: Type 2 external thread / internal thread M5
Manufacturers: SMI - Gräwe & Sohn GmbH

GP/S-AG/IG-10/4-M5-D15xH10 rubber-metal buffer - compact cylindrical damping element with one-sided external thread and internal thread for effective vibration and shock isolation

1,25 €

incl. 19% VAT , plus

From	Unit price / Piece
3	1,22 €*
5	1,21 €*
10	1,20 €*
25	1,05 €*
50	0,99 €*
100	0,92 €*
300	0,89 €*
500	0,85 €*

Available immediately
Delivery time: 6 - 7 Workdays (DE - int. shipments may differ)

Piece

Description

Compact solution for vibration and shock damping

The GP/S-AG/IG-10/4-M5-D15xH10 is a small, cylindrical rubber-metal buffer with one-sided external thread and internal thread. Despite its small dimensions, it is excellently suited for reducing oscillations, vibrations and shocks. The high-quality natural rubber (55° +/-5° Shore) ensures a balanced damping performance, while the galvanized metal parts provide reliable corrosion protection. This makes the silent block ideally suited for use in sensitive technical devices and wherever compact components are required.

Typical application areas can be found in electrical and equipment engineering, laboratory and medical technology, as well as in smaller machines or units. Thanks to its space-saving design, the buffer is ideal for applications with tight installation spaces and helps to extend the service life of sensitive components and significantly reduce operating noise.

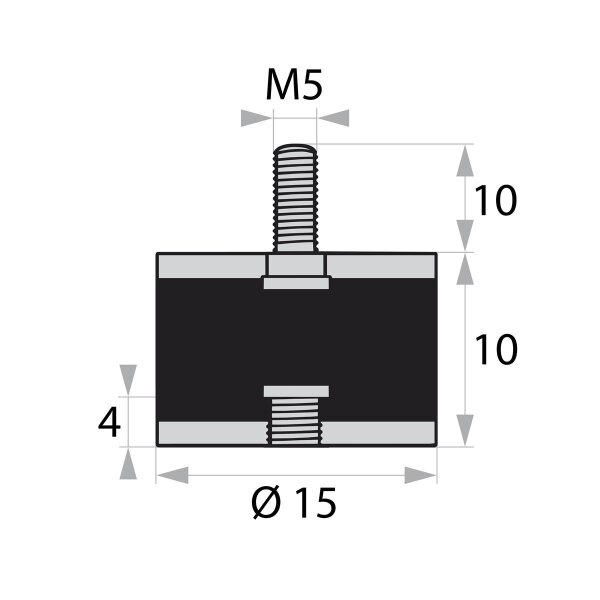

Technical data

Diameter: 15 mm
Height: 10 mm
External thread: M5, length 10 mm
Internal thread: M5, depth 4 mm
Material: Natural rubber NK 55° +/-5° Shore
Metal parts: White galvanized, CRVI-free
EAN: 4251463553763

Special features

Effective vibration and shock damping
Compact dimensions for tight installation situations
Maintenance-free, durable and elastic
Corrosion protection through galvanized metal parts
Also available in stainless steel

Further information

Other sizes, rubber qualities and hardnesses available on request
Custom manufacturing according to drawing or sample possible
Optimal for equipment technology, medical technology and smaller machines

Item information	Value
Shipping weight:	0,02 kg
Item weight:	0,02 kg
Dimensions ( Length × Width × Height ):	1,50 × 1,50 × 2,00 cm
Product safety information:	Specific risks and information for consumers or end users: Risk from incorrect use: Using the rubber-metal buffer in unsuitable applications, for example through overloading or incorrect positioning, may cause injuries or machine damage. Long-term risks: Elastomer parts may age over time and lose their damping properties. Regular inspection is required. Ageing and wear: Visually inspect the product at regular intervals.
