GP-IG/IG-4/4-M4-D10xH15 rubber-metal buffer rubber buffer vibration damper silentblock

GP-IG/IG-4/4-M4-D10xH15 rubber-metal buffer rubber buffer vibration damper silentblock

SKU: GP-IG/IG-4/4-M4-D10xH15-1STK
GTIN: 4251463554340
HAN: GP-IG/IG-4/4-M4-D10xH15
Category: Type 3 internal thread / internal thread M4
Manufacturers: SMI - Gräwe & Sohn GmbH

GP-IG/IG-4/4-M4-D10xH15 rubber-metal buffer vibration damper

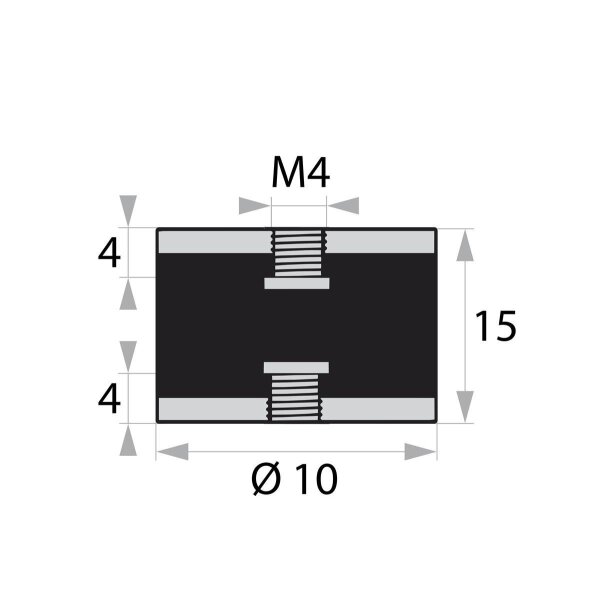

Dimensions: Ø 10 mm, height 15 mm, M4 internal thread, length 4 mm
Material: natural rubber (NK) 55° +/-5° Shore, metal parts white zinc-plated, CRVI-free
Special properties: vibration- and shock-damping, compact
Further information: stainless steel version and custom-made parts on request

1,37 €

incl. 19% VAT , plus

From	Unit price / Piece
3	1,34 €*
5	1,33 €*
10	1,31 €*
25	1,15 €*
50	1,08 €*
100	1,01 €*
300	0,97 €*
500	0,93 €*

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Piece

Description

Precise vibration damper for sensitive applications

The GP-IG/IG-4/4-M4-D10xH15 is a cylindrical type 3 rubber-metal buffer with internal thread on both sides. Thanks to its slim height of 15 mm, it is particularly suitable for applications where higher damping performance is required together with compact dimensions. The natural rubber used, with 55° +/-5° Shore, provides reliable vibration and shock damping, while the zinc-plated metal parts ensure effective corrosion protection.

This silentblock is used in precision mechanics, measurement technology and laboratory equipment where precise and reliable vibration reduction is required. It protects sensitive components from vibrations, extends the service life of devices and helps reduce operating noise. Thanks to the design with internal thread on both sides, it can be mounted flexibly and used in many ways.

Technical data

Diameter: 10 mm
Height: 15 mm
Internal thread: M4, length 4 mm
Design: type 3 (internal thread on both sides)
Material: natural rubber NK 55° +/-5° Shore
Metal parts: white zinc-plated, CRVI-free
EAN: 4251463554340

Special properties

Efficient vibration and shock damping
Compact design with greater height for higher damping performance
Durable, elastic and maintenance-free
Corrosion protection thanks to zinc-plated metal parts
Optionally also available in stainless steel version

Further notes

Other dimensions, rubber qualities and hardnesses available on request
Production according to drawing or sample possible
Particularly suitable for precision mechanics, measurement technology and laboratory equipment

Item information	Value
Shipping weight:	0,02 kg
Item weight:	0,02 kg
Dimensions ( Length × Width × Height ):	1,00 × 1,00 × 1,50 cm
Product safety information:	Specific risks and information for consumers or end users: Risk from incorrect use: Using the rubber-metal buffer in unsuitable applications, for example through overloading or incorrect positioning, may cause injuries or machine damage. Long-term risks: Elastomer parts may age over time and lose their damping properties. Regular inspection is required. Ageing and wear: Visually inspect the product at regular intervals.
