GP-IG/IG-4/4-M4-D15xH30 rubber-metal buffer rubber buffer vibration damper silentblock

GP-IG/IG-4/4-M4-D15xH30 rubber-metal buffer rubber buffer vibration damper silentblock

SKU: GP-IG/IG-4/4-M4-D15xH30-1STK
GTIN: 4251463554418
HAN: GP-IG/IG-4/4-M4-D15xH30
Category: Type 3 internal thread / internal thread M4
Manufacturers: SMI - Gräwe & Sohn GmbH

GP-IG/IG-4/4-M4-D15xH30 rubber-metal buffer vibration damper

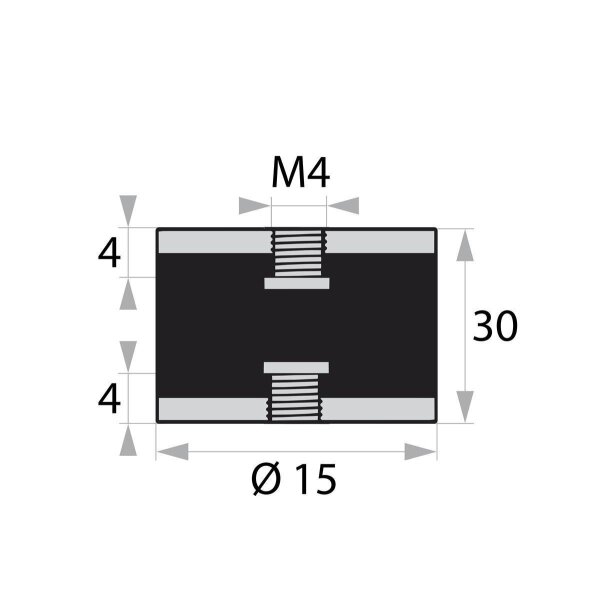

Dimensions: Ø 15 mm, height 30 mm, M4 internal thread, length 4 mm
Material: natural rubber (NK) 55° +/-5° Shore, metal parts white zinc-plated, CRVI-free
Special properties: stable damping performance for pumps and compressors
Further information: stainless steel version and custom-made parts on request

1,51 €

incl. 19% VAT , plus

From	Unit price / Piece
3	1,48 €*
5	1,47 €*
10	1,45 €*
25	1,27 €*
50	1,19 €*
100	1,12 €*
300	1,07 €*
500	1,03 €*

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Piece

Description

Reliable vibration damper for pumps and compressors

The GP-IG/IG-4/4-M4-D15xH30 is a cylindrical rubber-metal buffer with internal thread on both sides, designed for applications with increased height and stable damping performance. With a height of 30 mm, it offers reinforced vibration and shock damping that reliably protects sensitive components from vibrations. The natural rubber (55° +/-5° Shore) ensures elastic absorption of loads, while the zinc-plated metal parts provide corrosion resistance.

Especially when used on pumps, compressors and smaller units, this silentblock ensures effective reduction of vibrations and noise. This not only extends the service life of the devices, but also noticeably reduces disturbing structure-borne noise. Thanks to the design with internal threads on both sides, flexible and secure installation is possible.

Technical data

Diameter: 15 mm
Height: 30 mm
Internal thread: M4, length 4 mm
Design: type 3 (internal thread on both sides)
Material: natural rubber NK 55° +/-5° Shore
Metal parts: white zinc-plated, CRVI-free
EAN: 4251463554418

Special properties

Effective vibration and shock damping
Increased height for greater stability
Suitable for pumps, compressors and units
Durable, elastic and maintenance-free
Corrosion protection thanks to zinc-plated metal parts

Further notes

Other dimensions, rubber qualities and hardnesses available on request
Custom-made parts according to drawing or sample possible
Particularly suitable for applications with higher loads in equipment and mechanical engineering

Item information	Value
Shipping weight:	0,06 kg
Item weight:	0,06 kg
Dimensions ( Length × Width × Height ):	1,50 × 1,50 × 3,00 cm
Product safety information:	Specific risks and information for consumers or end users: Risk from incorrect use: Using the rubber-metal buffer in unsuitable applications, for example through overloading or incorrect positioning, may cause injuries or machine damage. Long-term risks: Elastomer parts may age over time and lose their damping properties. Regular inspection is required. Ageing and wear: Visually inspect the product at regular intervals.
