Rubber-metal buffer GP/S-IG/IG-10/10-M10-D60xH30 Rubber buffer Vibration damper Silent block

Rubber-metal buffer GP/S-IG/IG-10/10-M10-D60xH30 Rubber buffer Vibration damper Silent block

SKU: GP-IG/IG-10/10-M10-D60xH30-1STK
GTIN: 4251463554647
HAN: GP-IG/IG-10/10-M10-D60xH30
Category: Type 3 internal thread / internal thread M10
Manufacturers: SMI - Gräwe & Sohn GmbH

GP/S-IG/IG-10/10-M10-D60xH30 Rubber-metal buffer Silent block

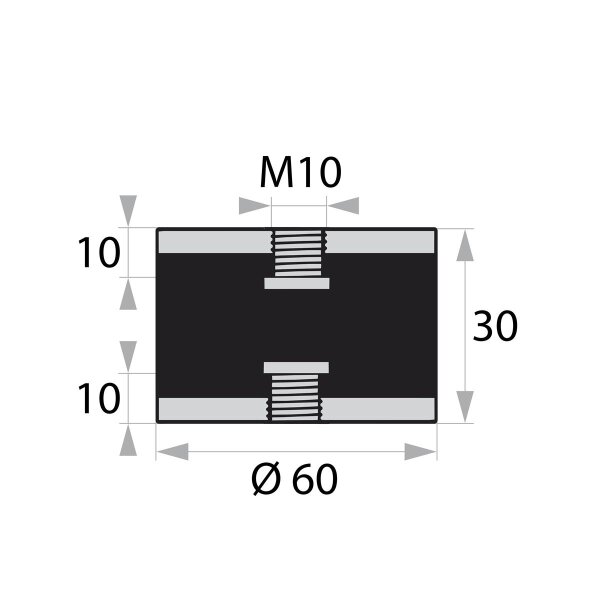

Dimensions: Ø 60 mm, height 30 mm, internal thread M10, length 10 mm
Cylindrical design Type 3/S with internal thread on both sides
Elastic natural rubber material 55° +/-5° Shore
Zinc-plated metal parts, CRVI-free for corrosion protection
Ideal for reducing vibrations, oscillations and shocks

8,29 €

incl. 19% VAT , plus

From	Unit price / Piece
3	8,13 €*
5	8,05 €*
10	7,96 €*
25	6,97 €*
50	6,55 €*
100	6,14 €*
300	5,89 €*
500	5,64 €*

Available immediately
Delivery time: 6 - 7 Workdays (DE - int. shipments may differ)

Piece

Description

Robust rubber-metal buffer for industrial applications

The GP/S-IG/IG-10/10-M10-D60xH30 is a high-quality vibration damper, specially developed to reduce shocks, vibrations and noise. With a diameter of 60 mm and a height of 30 mm, it is suitable for numerous applications in mechanical and plant engineering, pumps, motors, equipment and vehicle technology.

The Type 3/S design features two M10 internal threads, allowing stable and flexible mounting. The natural rubber material used with a hardness of 55° +/-5° Shore ensures optimum elasticity, high load capacity and a long service life. The white zinc-plated metal parts are CRVI-free and offer additional protection against corrosion.

Technical data

Diameter: 60 mm
Height: 30 mm
Internal thread: M10, length 10 mm
Design: Type 3/S – internal thread on both sides
Material: Natural rubber NR 55° +/-5° Shore
Metal parts: White zinc-plated, CRVI-free
EAN: 4251463554647

Special advantages

Effective vibration and shock damping
Long service life thanks to resistant material
Corrosion protection thanks to zinc-plated metal parts
Universally applicable in technical areas
Easy assembly due to internal thread on both sides

Areas of application

Mechanical and plant engineering
Pumps and compressors
Motors and equipment
Vehicle and agricultural machinery

Item information	Value
Shipping weight:	0,26 kg
Item weight:	0,24 kg
Dimensions ( Length × Width × Height ):	6,00 × 6,00 × 3,00 cm
Product safety information:	Specific risks and information for consumers or end users: Risk from incorrect use: Using the rubber-metal buffer in unsuitable applications, for example through overloading or incorrect positioning, may cause injuries or machine damage. Long-term risks: Elastomer parts may age over time and lose their damping properties. Regular inspection is required. Ageing and wear: Visually inspect the product at regular intervals.
