GP4-100-60-AG-M16 x 41 rubber-metal buffer rubber buffer vibration damper silent block

GP4-100-60-AG-M16 x 41 rubber-metal buffer rubber buffer vibration damper silent block

SKU: GP-AG-41-M16-D100xH60-1STK
GTIN: 4251463555699
HAN: GP-AG-41-M16-D100xH60
Category: Type 4, one-sided external thread M16
Manufacturers: SMI - Gräwe & Sohn GmbH

GP-AG-41-M16-D100xH60 rubber-metal buffer silent block

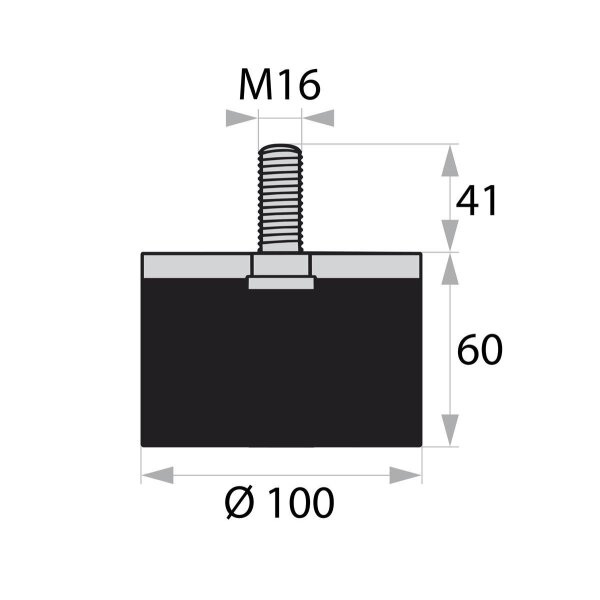

Dimensions: Ø 100 mm, height 60 mm, thread length 41 mm, thread M16
Material: natural rubber NR, 55° +/-5° Shore, metal parts white galvanized, CRVI-free
Special features: strong vibration damping, durable, suitable for high loads
Further information: also available in other dimensions, rubber qualities and with stainless steel parts on request

17,89 €

incl. 19% VAT , plus

From	Unit price / Piece
3	17,53 €*
5	17,35 €*
10	17,17 €*
25	15,02 €*
50	14,13 €*
100	13,24 €*
300	12,70 €*
500	12,16 €*

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Piece

Description

Rubber-metal buffer GP-AG-41-M16-D100xH60 – silent block for heavy machines and systems

The rubber-metal buffer GP-AG-41-M16-D100xH60 is an extra robust silent block specially developed for applications with heavy mechanical loads. With a diameter of 100 mm and a height of 60 mm, it offers a large damping surface and reliably absorbs vibrations and shocks. The natural rubber material with a hardness of 55° +/-5° Shore combines elasticity with high resistance. The white galvanized, CRVI-free metal parts reliably protect against corrosion and make the vibration damper durable and versatile. This buffer is particularly suitable for mechanical engineering, plant engineering and industrial constructions where effective vibration and shock damping is essential.

Technical data:
- Diameter: 100 mm
- Height: 60 mm
- Thread length: 41 mm
- Thread: M16
- Design: type 4, external thread on one side
Material properties:
- Rubber: natural rubber NR 55° +/-5° Shore
- Metal parts: white galvanized, CRVI-free
- Very high load capacity under vibrations and shocks
- Long service life even in continuous use
Options & custom-made parts:
- Further dimensions, qualities and hardnesses available
- Also available with stainless steel metal parts
- Custom-made version according to drawing or sample

Item information	Value
Shipping weight:	0,86 kg
Item weight:	0,80 kg
Dimensions ( Length × Width × Height ):	10,00 × 10,00 × 10,10 cm
Product safety information:	Specific risks and information for consumers or end users: Risk from incorrect use: Using the rubber-metal buffer in unsuitable applications, for example through overloading or incorrect positioning, may cause injuries or machine damage. Long-term risks: Elastomer parts may age over time and lose their damping properties. Regular inspection is required. Ageing and wear: Visually inspect the product at regular intervals.
