GP-IG/IG-10/10-M10-D50xH30 rubber-metal buffer rubber buffer vibration damper silentblock

GP-IG/IG-10/10-M10-D50xH30 rubber-metal buffer rubber buffer vibration damper silentblock

SKU: GP-IG/IG-10/10-M10-D50xH30-1STK
GTIN: 4251463554593
HAN: GP-IG/IG-10/10-M10-D50xH30
Category: Type 3 internal thread / internal thread M10
Manufacturers: SMI - Gräwe & Sohn GmbH

GP-IG/IG-10/10-M10-D50xH30 rubber-metal buffer vibration damper

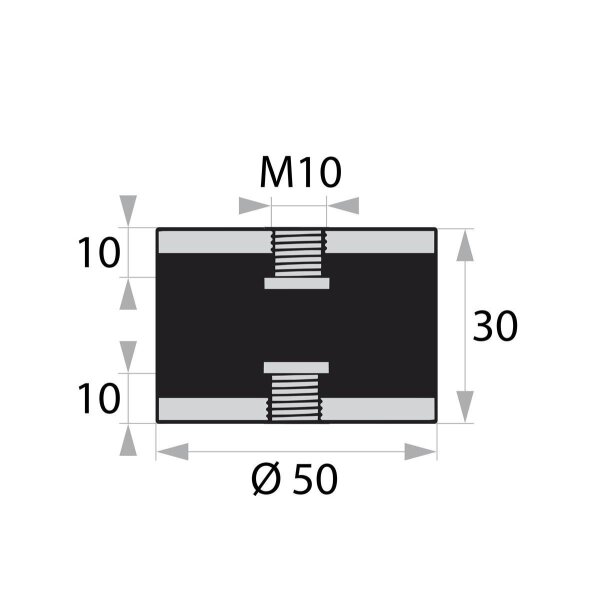

Dimensions: Ø 50 mm, height 30 mm, M10 internal thread, length 10 mm
Material: natural rubber (NK) 55° +/-5° Shore, metal parts white zinc-plated, CRVI-free
Special properties: effective vibration damping for units and mechanical engineering
Further information: stainless steel version and custom-made parts on request

4,24 €

incl. 19% VAT , plus

From	Unit price / Piece
3	4,15 €*
5	4,11 €*
10	4,07 €*
25	3,56 €*
50	3,35 €*
100	3,13 €*
300	3,01 €*
500	2,88 €*

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Piece

Description

Vibration damper for units and mechanical engineering with medium load

The GP-IG/IG-10/10-M10-D50xH30 is a cylindrical rubber-metal buffer with internal thread on both sides, specially developed for use in mechanical engineering, units and motors. With a diameter of 50 mm and a height of 30 mm, it ensures reliable vibration and shock damping. The natural rubber (55° +/-5° Shore) offers an ideal ratio between elasticity and stability, while the white zinc-plated metal parts provide long-lasting corrosion protection.

This silentblock effectively reduces vibrations and structure-borne noise, protects sensitive components from overload and extends the service life of machines and units. Thanks to the M10 internal threads on both sides, secure and flexible installation is possible.

Technical data

Diameter: 50 mm
Height: 30 mm
Internal thread: M10, length 10 mm
Design: type 3 (internal thread on both sides)
Material: natural rubber NK 55° +/-5° Shore
Metal parts: white zinc-plated, CRVI-free
EAN: 4251463554593

Special properties

Reliable vibration and shock damping
Ideal for mechanical engineering and units
Suitable for applications with medium load
Durable, maintenance-free and corrosion-protected
Also available in stainless steel version

Further notes

Other sizes, hardnesses and rubber qualities available on request
Custom-made parts according to drawing or sample possible
Typical applications: mechanical engineering, units, motors and drive units

Item information	Value
Shipping weight:	0,21 kg
Item weight:	0,20 kg
Dimensions ( Length × Width × Height ):	5,00 × 5,00 × 3,00 cm
Product safety information:	Specific risks and information for consumers or end users: Risk from incorrect use: Using the rubber-metal buffer in unsuitable applications, for example through overloading or incorrect positioning, may cause injuries or machine damage. Long-term risks: Elastomer parts may age over time and lose their damping properties. Regular inspection is required. Ageing and wear: Visually inspect the product at regular intervals.
