GP-IG/IG-10/10-M10-D50xH40 rubber-metal buffer rubber buffer vibration damper silent block

GP-IG/IG-10/10-M10-D50xH40 rubber-metal buffer rubber buffer vibration damper silent block

SKU: GP-IG/IG-10/10-M10-D50xH40-1STK
GTIN: 4251463554609
HAN: GP-IG/IG-10/10-M10-D50xH40
Category: Type 3 internal thread / internal thread M10
Manufacturers: SMI - Gräwe & Sohn GmbH

GP-IG/IG-10/10-M10-D50xH40 rubber-metal buffer - cylindrical damping element with internal thread on both sides, specially developed for pumps, motor mounts and units in continuous operation

4,95 €

incl. 19% VAT , plus

From	Unit price / Piece
3	4,85 €*
5	4,80 €*
10	4,75 €*
25	4,16 €*
50	3,91 €*
100	3,66 €*
300	3,51 €*
500	3,37 €*

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Piece

Description

Vibration damper for pumps & motor mounts in continuous operation

The GP-IG/IG-10/10-M10-D50xH40 is a cylindrical rubber-metal buffer with internal thread on both sides, specially developed for pumps, motor mounts and units in continuous operation. With a diameter of 50 mm and a height of 40 mm, it offers robust damping against vibrations and shocks. The natural rubber used (55° +/-5° Shore) combines flexibility with stability, while the white galvanized metal parts ensure long-lasting corrosion protection.

This silent block reliably reduces vibrations, structure-borne noise and load peaks that would otherwise lead to increased wear. Thus, it contributes to a longer service life and more uniform, quieter operation of pumps and motors. Thanks to the M10 internal threads on both sides, secure and flexible mounting is guaranteed.

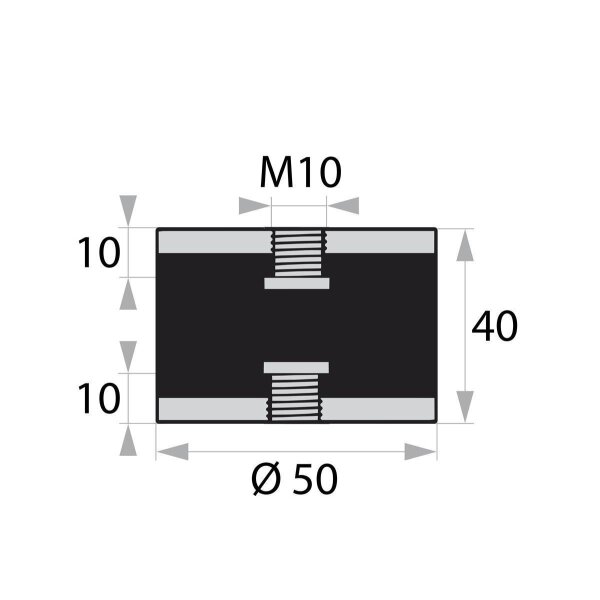

Technical data

Diameter: 50 mm
Height: 40 mm
Internal thread: M10, length 10 mm
Design: Type 3 (internal thread on both sides)
Material: Natural rubber NK 55° +/-5° Shore
Metal parts: White galvanized, CRVI-free
EAN: 4251463554609

Special features

Effective vibration and shock damping
Specially for pumps & motor mounts in continuous operation
Reduces operating noise and protects components
Maintenance-free, durable and corrosion-resistant
Also available in stainless steel

Further information

Other sizes, rubber qualities and hardnesses available on request
Custom manufacturing according to drawing or sample possible
Application areas: Pumps, motor mounts, units & mechanical engineering

Item information	Value
Shipping weight:	0,29 kg
Item weight:	0,27 kg
Dimensions ( Length × Width × Height ):	5,00 × 5,00 × 4,00 cm
Product safety information:	Specific risks and information for consumers or end users: Risk from incorrect use: Using the rubber-metal buffer in unsuitable applications, for example through overloading or incorrect positioning, may cause injuries or machine damage. Long-term risks: Elastomer parts may age over time and lose their damping properties. Regular inspection is required. Ageing and wear: Visually inspect the product at regular intervals.
