GP-IG/IG-10/10-M10-D50xH45 rubber-metal buffer rubber buffer vibration damper silentblock

GP-IG/IG-10/10-M10-D50xH45 rubber-metal buffer rubber buffer vibration damper silentblock

SKU: GP-IG/IG-10/10-M10-D50xH45-1STK
GTIN: 4251463554616
HAN: GP-IG/IG-10/10-M10-D50xH45
Category: Type 3 internal thread / internal thread M10
Manufacturers: SMI - Gräwe & Sohn GmbH

GP-IG/IG-10/10-M10-D50xH45 rubber-metal buffer vibration damper

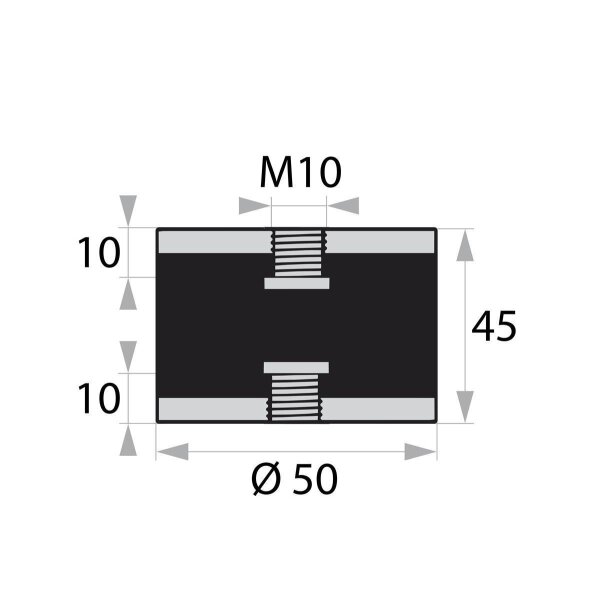

Dimensions: Ø 50 mm, height 45 mm, M10 internal thread, length 10 mm
Material: natural rubber (NK) 55° +/-5° Shore, metal parts white zinc-plated, CRVI-free
Special properties: high load capacity for units and compressors
Further information: stainless steel version and custom-made parts on request

5,16 €

incl. 19% VAT , plus

From	Unit price / Piece
3	5,06 €*
5	5,01 €*
10	4,96 €*
25	4,34 €*
50	4,08 €*
100	3,82 €*
300	3,67 €*
500	3,51 €*

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Piece

Description

Vibration damper for units and compressors with high load

The GP-IG/IG-10/10-M10-D50xH45 is a powerful rubber-metal buffer with internal thread on both sides, specially developed for units, compressors and machines with higher loads. With a diameter of 50 mm and an installation height of 45 mm, it ensures strong vibration and shock damping. The natural rubber used (55° +/-5° Shore) offers a balanced combination of elasticity and stability, while the white zinc-plated metal parts ensure reliable corrosion protection.

This silentblock reduces vibrations, structure-borne noise and load peaks that can damage components. This improves the service life and operational reliability of compressors and units even under intensive continuous load. Thanks to the M10 internal threads on both sides, simple, secure and flexible installation is ensured.

Technical data

Diameter: 50 mm
Height: 45 mm
Internal thread: M10, length 10 mm
Design: type 3 (internal thread on both sides)
Material: natural rubber NK 55° +/-5° Shore
Metal parts: white zinc-plated, CRVI-free
EAN: 4251463554616

Special properties

Stable vibration and shock damping
Specially for units and compressors with high load
Reduces noise development and extends service life
Durable, maintenance-free and corrosion-protected
Optionally also available in stainless steel version

Further notes

Other sizes, hardnesses and rubber qualities are available on request
Custom-made parts according to drawing or sample possible
Applications: units, compressors, mechanical engineering and motors

Item information	Value
Shipping weight:	0,32 kg
Item weight:	0,30 kg
Dimensions ( Length × Width × Height ):	5,00 × 5,00 × 4,50 cm
Product safety information:	Specific risks and information for consumers or end users: Risk from incorrect use: Using the rubber-metal buffer in unsuitable applications, for example through overloading or incorrect positioning, may cause injuries or machine damage. Long-term risks: Elastomer parts may age over time and lose their damping properties. Regular inspection is required. Ageing and wear: Visually inspect the product at regular intervals.

Product safety information

Manufacturer information:

SMI - Gräwe & Sohn GmbH
Bahnhofstraße 44
Brandenburg
Brandenburg, Deutschland, 14774
