K-VKP5x10 (PU 100 metres) EPDM sponge rubber - square profile self-adhesive rubber profile, profile rubber

SKU: SMI-K-VKP5x10-100M
GTIN: 4251463525319
HAN: K-VKP5x10
Category: Self-adhesive EPDM sponge rubber
Manufacturers: SMI - Gräwe & Sohn GmbH

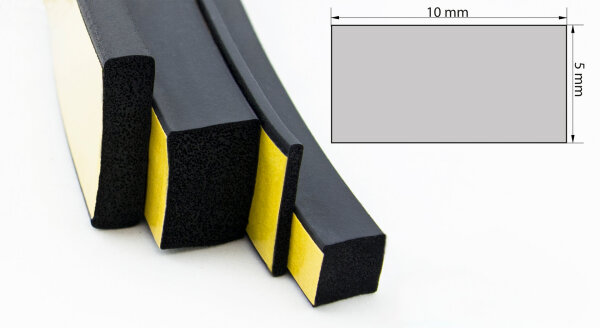

EPDM sponge rubber square profile 5x10 mm self-adhesive

Dimensions: width 10 mm, height 5 mm – length 100 m (PU 100 metres)
Material: EPDM sponge rubber, black, cellular soft-elastic material according to DIN ISO 3302-1 E3
Properties: hardness approx. 15° Shore A ± 5, temperature-resistant -40 °C to +120 °C, very good ozone & weather resistance
Additional info: self-adhesive on one side as installation aid, supplied in 100 m length

250,85 €

2,51 € per 1 m

incl. 19% VAT , plus

Available immediately
Delivery time: 6 - 7 Workdays (DE - int. shipments may differ)

Metre

Description
PDF (1)

EPDM sponge rubber square profile 5x10 mm – flexible self-adhesive sealing profile

The 5x10 mm square profile made of EPDM sponge rubber is a reliable solution for sealing, insulation and use as edge protection. The cellular soft material offers high flexibility and adapts optimally to different surfaces. Thanks to the self-adhesive version, the profile can be processed easily and cleanly – ideal for quick installation without additional adhesive.

Thanks to its excellent ozone and weather resistance, the profile is suitable for both indoor and outdoor use. With its hardness of approx. 15° Shore A, it offers a good combination of elasticity and stability. It is resistant to acids and alkalis, but not resistant to oils, greases or petrol. With temperature resistance from -40 °C to +120 °C, the material remains reliably dimensionally stable even under changing conditions.

Typical areas of application include seals in the construction industry, mechanical engineering and vehicle construction as well as doors, windows and technical systems. This sponge rubber profile can also be used for sound insulation applications or as a flexible insulation profile. Supplied on a 100-metre roll, it is particularly suitable for large-area or continuous sealing work.

Technical data:

Dimensions: width 10 mm, height 5 mm
Length: 100 m (packaging unit)
Colour: black
Hardness: approx. 15° Shore A ± 5
Tolerances: according to DIN ISO 3302-1 E3
Temperature range: -40 °C to +120 °C

Material properties:

Material: EPDM sponge rubber, cellular and soft-elastic
Ozone- and weather-resistant (class 1)
UV- and ageing-resistant
Acid and alkali resistance: excellent (class 1)
Not resistant to petrol, oils and greases (class 5)
Impact elasticity: medium (class 3)
Abrasion resistance: medium (class 3)
Tear strength: low (class 5)

Additional notes:

Version: self-adhesive on one side (as installation aid)
EAN: 4251463525319
Sales unit: 1 piece = 1 roll of 100 m

Item information	Value
Shipping weight:	4,28 kg
Item weight:	4,00 kg
Content:	100,00 m
Dimensions ( Width × Height ):	10,00 × 5,00 cm
Product safety information:	Odour formation: All our profiles comply with the European RoHS and REACH regulations. Nevertheless, temporary odours may occur in enclosed spaces, to which some people may be sensitive. Wear: Although our profiles have a good service life, signs of wear will appear sooner or later depending on use. These may impair the dimensional stability and sealing performance of the profile. Therefore, check its condition regularly. Safety: Avoid prolonged skin contact and contact of the profile with food. Due to the risk of strangulation, keep this profile out of the reach of children. The adhesive surface is non-toxic and presents no particular risk during normal use. Nevertheless, prolonged direct skin contact should be avoided and gloves are recommended during processing.
